Terraform HA Blue/Green Web Tier (SSM-Only)

Enterprise-style HA web tier using ALB weighted routing + blue/green ASGs in private subnets with SSM-only access (no SSH) and IMDSv2.

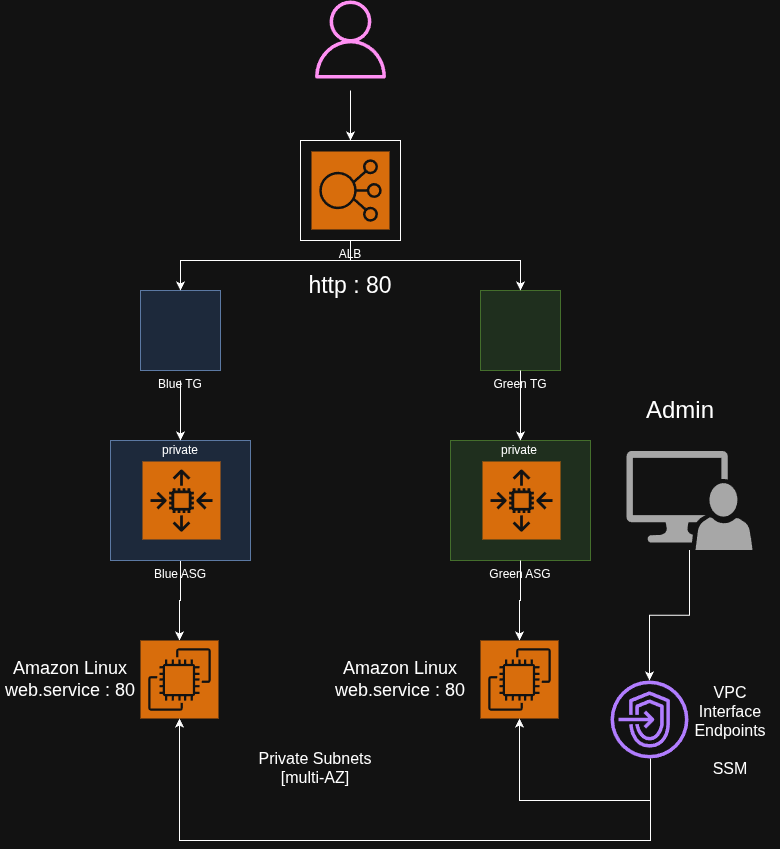

Architecture

Problem

I wanted a practical, enterprise-style Terraform project that goes beyond “spin up an EC2 instance” and focuses on real deployment and resiliency patterns: high availability across subnets, secure access without SSH, and a blue/green workflow that supports fast, low-risk cutovers.

Approach

• Build a VPC layout with public subnets for the load balancer and private subnets for compute.
• Deploy an internet-facing Application Load Balancer with two target groups (Blue / Green) and weighted forwarding.
• Provision two Auto Scaling Groups (Blue / Green) behind the ALB using launch templates and bootstrap scripts.
• Use Amazon Linux 2023 + systemd to run a lightweight web service that shows the environment color and instance ID.
• Manage instances through AWS Systems Manager Session Manager and disable SSH on hosts.

Key Decisions

• ALB weighted forwarding for safe traffic shifting.
• SSM-only access (no SSH keys, no bastion host).
• IMDSv2 enforced.
• Keep costs low (no NAT Gateway, no WAF).
• ASG instance refresh enabled for immutable-style updates.

Results

• Fully working HA web tier managed end-to-end with Terraform.
• Verified cutover by shifting ALB weights.
• Verified SSM access + SSH disabled on instances.
• Modular structure that can be extended into a v2 (failover/monitoring).
